- Dual Ceramic Ball Bearing System

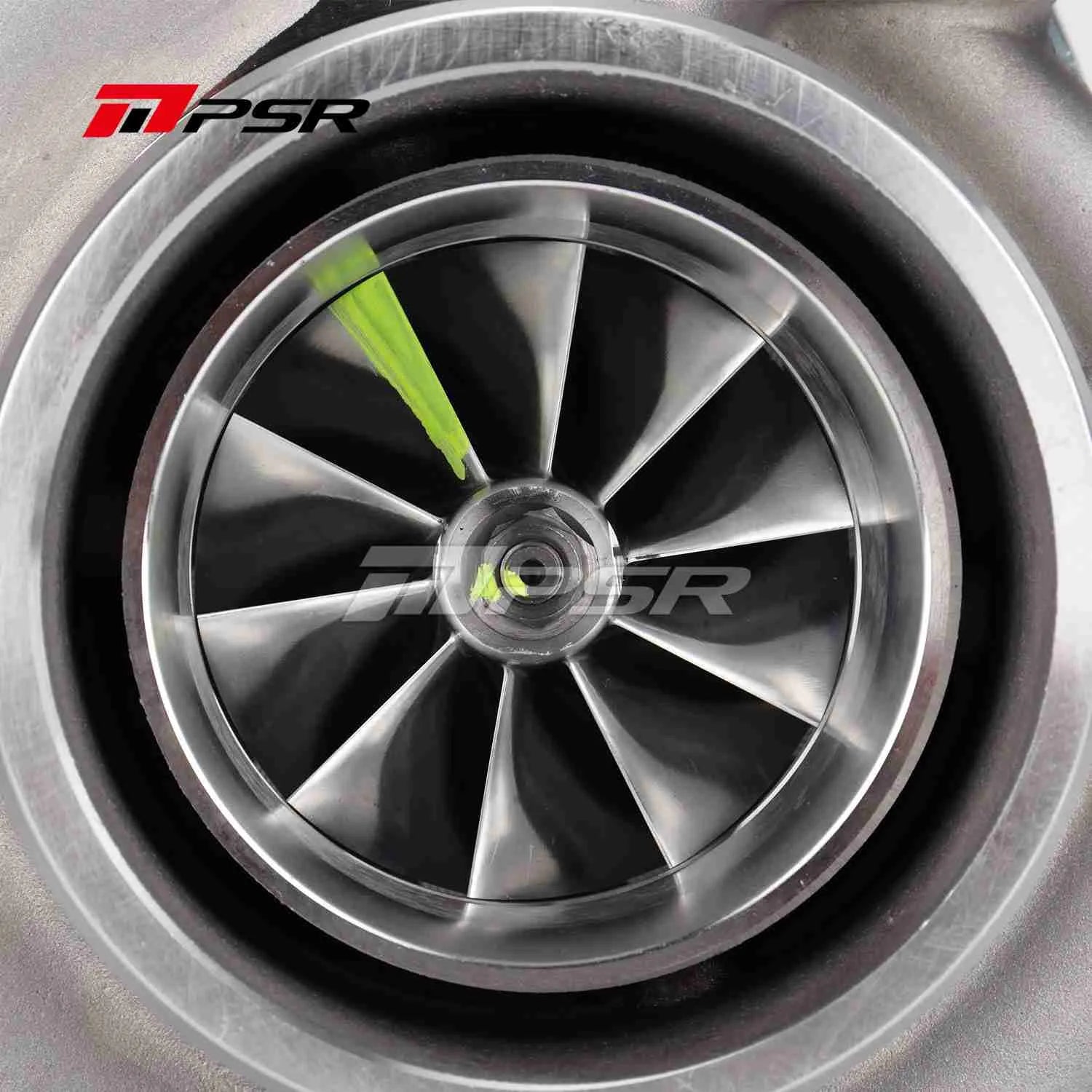

- 10 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
- Inconel 713c Gen2 9 Blade Turbine Wheel with “RS” blade profile design
- Gen2 Cover Integrated with the Speed Sensor Port
- 0.83, 1.01 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet, etc. turbine housings in option
- V-Band Flange kit(s) for the exhaust housing included
- Max Air Flow rate: ~90 lb/min, rated @ 1000 FWHP
-
- Compressor Wheel: 67*84mm
- Turbine Wheel: 68*62mm (“RS” blade profile)
- Compressor Inlet: 4.0 Hose
- Compressor Outlet: 2.5 Hose
- Turbine Inlet: T3, T4, or 2.5″ V-Band
- Turbine Outlet: 3″ V-Band (3.55″OD)
- Oil Feed: -4 AN connect to the Oil Restrictor
- Oil Drain: Std T3 Flange
- Water In/Outlet: M14*1.5
We highly recommended running water cooling for better durability.
