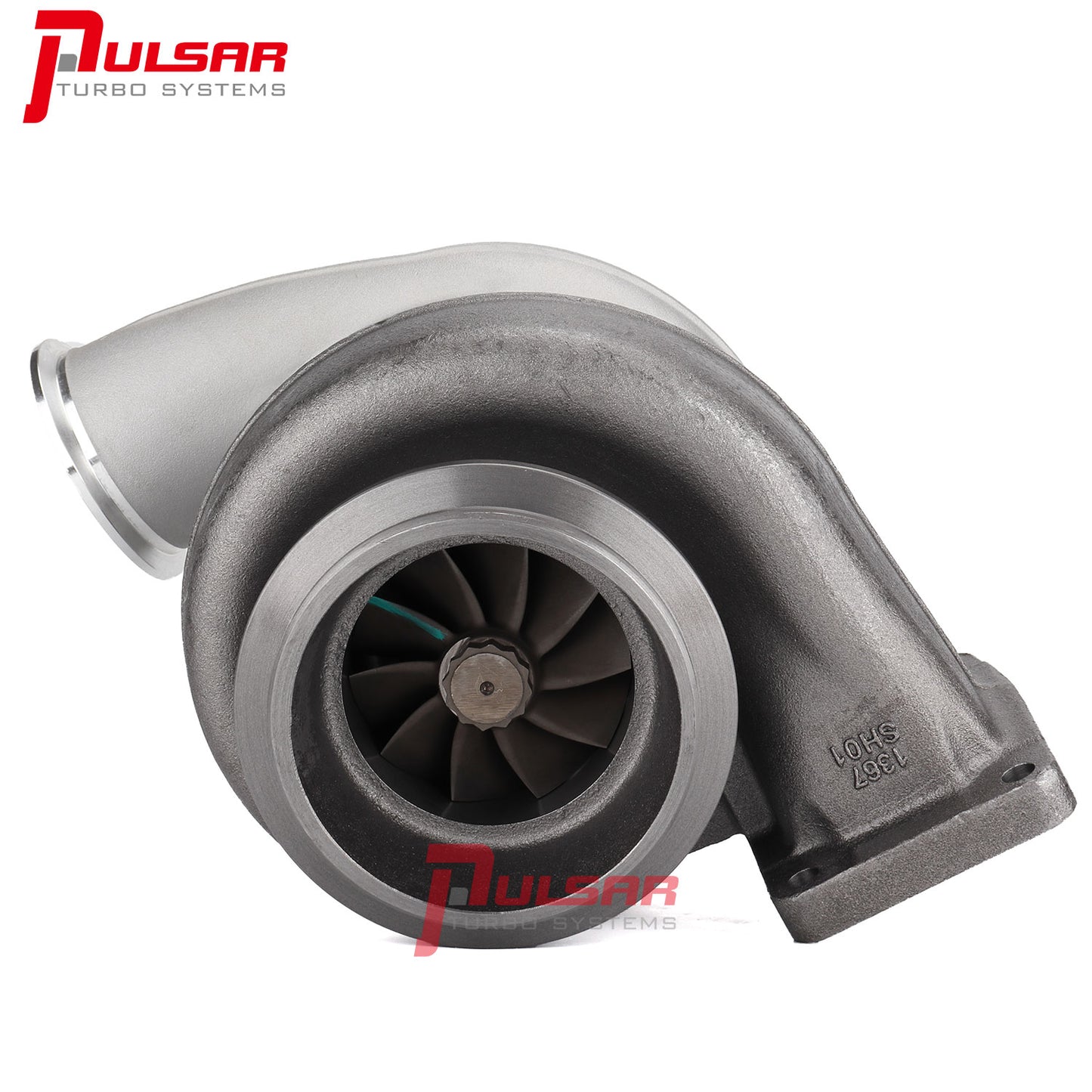

- 7+7 blades 80*113mm billet compressor wheel with extended tip technology for the ultimate in aerodynamics
- S400 96*88mm Inconel 713 turbine wheel for high-temperature operation
- T6 Divided turbine housings in 1.32A/R? or 1.58 A/R with 5″ V Band Outlet 5.75 OD Marmon flange
- T4 Divided turbine housing in 1.25 A/R 0r 1.10 A/R
- Compressor flow rated at 120 lb/min capabilities ranging from 750 to 1400 horsepower
Description
- Compressor Wheel: 80*113mm
- Turbine Wheel: 96*88mm or 83*74mm
- Compressor Inlet: 5″ Hose
- Compressor Outlet: V-Band
- Turbine Inlet: T6 or T4
- Turbine Outlet: 5.75″ Marmon(T6) or 4″ V-Band(T4)
- Oil Feed: 1/4 NPT
- Oil Drain: Std T6 Drain Flange
- Outlet Flange and Clamp not included
