Recommending Engine Displacement: 3.0-8.0L
HP Rating 950-2000
Features:

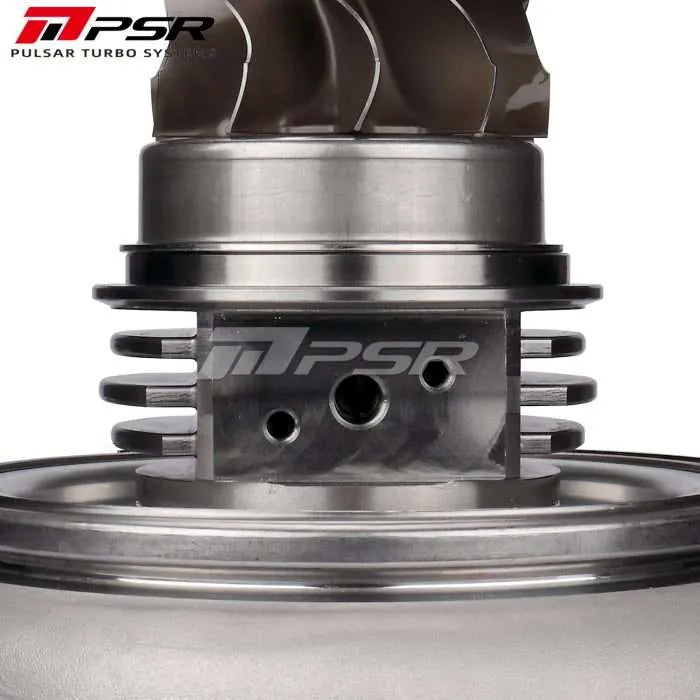

- CNC Machined Bearing Housing with The FIN COOLING DESIGN
- Dual Ceramic Ball Bearing Systems
- 80mm, 85mm, 88mm, 92mm, and 98mm Compressor Wheel Options
- Billet Compressor Wheels with Extended Tip Technology
- 102/91mm and 109/99mm Turbine Wheel Options
- STD and T51R MOD in option for Compressor Cover with Speed Sensor Port integrated
- -12AN Oil Drain Flange and TRB. Inlet Gasket Come in Box
Details:
- Compressor Inlet: 5” Slip-Fit
- Compressor Outlet: V-band *
- Turbine Housing A/R: 1.32 and 1.58 in Option
- Turbine Housing Inlet: T6 Open and T6 Divided in Option
- Turbine Housing Outlet: 3/4 Marmon V-band *
- Oil Feed Port 1/4NPT
- Oil Drain Std T6 drain Flange
